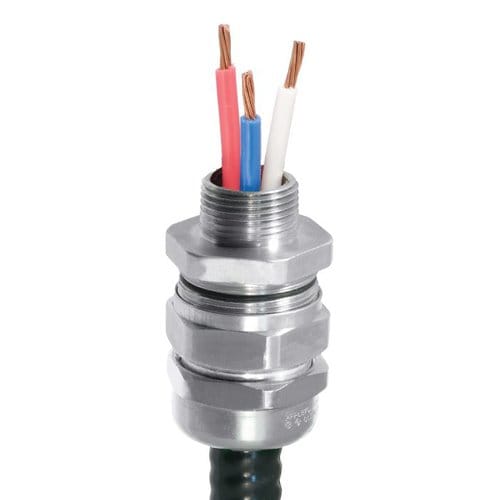

Description
Technical
| Design Specification | BS 6121:Part 1:1989, IEC 62444, EN 62444 |
| Mechanical Classifications* | Impact = Level 8, Retention = Class D |
| Enclosure Protection | IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only |
| ATEX Certificate | SIRA07ATEX1122X |
| Code of Protection | II 2GD, Ex e II Gb, Ex ta IIIC Da IP66 |
| Compliance Standards | EN 60079-0,7, EN 61241-0,1 |
| IECEx Certificate | IECEx SIR 07.0083X |
| Code of Protection | Ex e II Gb, Ex ta IIIC Da IP66 |
| Compliance Standards | IEC 60079-0,1,7,31 |
| cCSAus Certificate | 1129339 |
| CSAus Code of Protection | Class II, Div 1 and 2, Groups E, F, and G; Class III, Div 1 and 2; Encl. Type 3, 4, 4X. Class I, Zone 1, AEx e II; |
| cCSA Code of Protection | Class II, Div 1 and 2, Groups E, F, and G; Class III, Div 1 and 2; Encl. Type 3, 4, 4X. Ex e II; |
| Compliance Standards | CAN/CSA-C22.2 Various Sections (See Certificate) CAN/CSA-E60079-0, IEC 60079-0,1 |
| UL Certificate | E256366 |
| Code of Protection | Class I, Zone 1, AEx e II |
| Compliance Standards | UL 514B, UL 60079-0,7, U 2225 |
| EAC Certificate | TC RU C-GB.AA87.B.00487 |
| UkrSEPRO | UA.TR.047.C.0644-15 |
| CCOE / PESO (India) Certificate | P333688 |
| Marine Approvals | LRS: 01/00172, DNV: TAE00000Y, ABS: 14-LD234401A-4-PDA, BV: 43180/A1BV |
| Ingress Protection Rating** | NEMA 4X & IP66 |
| Cable Gland Material | Copper Free Aluminium (<0.4%), Electroless Nickel Plated Brass, Stainless Steel |
| Seal Material | CMP SOLO LSF Halogen Free Thermoset Elastomer |
| Cable Type | Corrugated & Interlocked Metal Clad Armour (MC) or TECK90, Continuously Welded Metal Clad Armour (MCHL), ACIC-HL, ACWU90-HL, RC90-HL, RA90-HL |
| Armour Clamping | 360° Stainless Steel Grounding Spring (non-magnetic) |
| Sealing Technique | CMP Load Retention Seal |
| Sealing Area(s) | Cable Outer Jacket |
Product Table
Metric
| Order Reference (NPT) | Entry Thread “C” | Minimum Thread Length “E” | Minimum Thread Length “E” | Cable Armor Diameter “A” | Cable Jacket Diameter “B” | Nominal Assembly Length “F” | Max | Shroud | Weight (Kgs) | ||||||||
| End Stop In | End Stop Out | ||||||||||||||||
| Aluminum | Nickel Plated Brass | Stainless Steel | NPT | Metric | NPT | Metric | Min | Max | Min | Max | Min | Max | Across Flats “D” | Across Corners “D” | |||
| TMC050SA | TMC050SNB | TMC050SSS | ½” | M20 | 19.8 | 15.0 | No Stop | No Stop | 8.6 | 12.7 | 8.9 | 14.0 | 46.5 | 30.5 | 33.5 | PVC06 | 0.22 |
| TMC050A | TMC050NB | TMC050SS | ½” | M20 | 19.8 | 15.0 | No Stop | No Stop | 13.0 | 17.0 | 11.2 | 20.1 | 52.3 | 36.1 | 39.6 | PVC09 | 0.28 |
| TMC075A | TMC075NB | TMC075SS | ¾” | M25 | 20.3 | 15.0 | 15.0 | 19.3 | 19.3 | 23.4 | 17.0 | 26.4 | 53.1 | 40.9 | 45.2 | PVC10 | 0.33 |
| TMC100A | TMC100NB | TMC100SS | 1″ | M32 | 24.9 | 15.0 | 19.8 | 24.6 | 24.6 | 29.2 | 22.1 | 32.3 | 56.9 | 50.0 | 55.1 | PVC13 | 0.50 |
| TMC125A | TMC125NB | TMC125SS | 1 ¼” | M40 | 25.7 | 15.0 | 27.4 | 31.2 | 31.2 | 35.3 | 29.5 | 38.1 | 56.4 | 55.1 | 60.5 | PVC15 | 0.59 |
| TMC150A | TMC150NB | TMC150SS | 1 ½” | M50 | 26.2 | 15.0 | 33.5 | 37.1 | 37.1 | 41.1 | 35.6 | 44.2 | 58.7 | 59.9 | 66.0 | PVC18 | 0.69 |
| TMC200SA | TMC200SNB | TMC200SSS | 2″ | M50 | 26.9 | 15.0 | 38.4 | 42.7 | 42.7 | 47.0 | 40.1 | 50.0 | 64.0 | 70.1 | 77.0 | PVC21 | 1.20 |
| TMC200A | TMC200NB | TMC200SS | 2″ | M63 | 26.9 | 15.0 | 45.0 | 49.0 | 49.0 | 53.1 | 47.2 | 56.1 | 63.2 | 74.9 | 82.6 | PVC23 | 1.10 |
| TMC250SA | TMC250SNB | TMC250SSS | 2 ½” | M75 | 39.9 | 15.0 | 52.1 | 54.9 | 54.9 | 58.9 | 52.8 | 62.0 | 69.3 | 80.0 | 88.1 | PVC25 | 1.70 |
| TMC250A | TMC250NB | TMC250SS | 2 ½” | M75 | 39.9 | 15.0 | 57.2 | 61.2 | 61.2 | 64.8 | 59.2 | 68.1 | 72.1 | 85.1 | 93.5 | PVC27 | 1.60 |
| TMC300A | TMC300NB | TMC300SS | 3″ | M90 | 41.4 | 15.0 | 64.5 | 70.6 | 70.6 | 75.4 | 66.5 | 79.5 | 98.3 | 110.0 | 120.9 | LSF32 | 3.50 |
| TMC350A | TMC350NB | TMC350SS | 3½” | M100 | 42.9 | 24.1 | 73.9 | 83.6 | 83.6 | 88.6 | 75.9 | 97.3 | 117.6 | 133.4 | 146.8 | LSF34 | 6.70 |
| TMC400A | TMC400NB | TMC400SS | 4″ | M115 | 43.9 | 24.1 | 73.9 | 83.6 | 83.6 | 88.6 | 75.9 | 97.3 | 117.6 | 133.4 | 146.8 | LSF34 | 7.50 |
| Dimensions displayed in millimeters unless otherwise stated | |||||||||||||||||
Imperial
| Order Reference (NPT) | Entry Thread “C” | Minimum Thread Length “E” | Minimum Thread Length “E” | Cable Armor Diameter “A” | Cable Jacket Diameter “B” | Nominal Assembly Length “F” | Max | Shroud | Weight (Ozs) | ||||||||
| End Stop In | End Stop Out | ||||||||||||||||
| Aluminum | Nickel Plated Brass | Stainless Steel | NPT | Metric | NPT | Metric | Min | Max | Min | Max | Min | Max | Across Flats “D” | Across Corners “D” | |||
| TMC050SA | TMC050SNB | TMC050SSS | ½” | M20 | 0.78 | 0.59 | No Stop | No Stop | 0.34 | 0.50 | 0.35 | 0.55 | 1.83 | 1.20 | 1.32 | PVC06 | 7.90 |
| TMC050A | TMC050NB | TMC050SS | ½” | M20 | 0.78 | 0.59 | No Stop | No Stop | 0.51 | 0.67 | 0.44 | 0.79 | 2.06 | 1.42 | 1.56 | PVC09 | 9.91 |
| TMC075A | TMC075NB | TMC075SS | ¾” | M25 | 0.80 | 0.59 | 0.59 | 0.76 | 0.76 | 0.92 | 0.67 | 1.04 | 2.09 | 1.61 | 1.78 | PVC10 | 11.61 |
| TMC100A | TMC100NB | TMC100SS | 1″ | M32 | 0.98 | 0.59 | 0.78 | 0.97 | 0.97 | 1.15 | 0.87 | 1.27 | 2.24 | 1.97 | 2.17 | PVC13 | 17.53 |
| TMC125A | TMC125NB | TMC125SS | 1 ¼” | M40 | 1.01 | 0.59 | 1.08 | 1.23 | 1.23 | 1.39 | 1.16 | 1.50 | 2.22 | 2.17 | 2.38 | PVC15 | 20.92 |
| TMC150A | TMC150NB | TMC150SS | 1 ½” | M50 | 1.03 | 0.59 | 1.32 | 1.46 | 1.46 | 1.62 | 1.40 | 1.74 | 2.31 | 2.36 | 2.60 | PVC18 | 24.45 |
| TMC200SA | TMC200SNB | TMC200SSS | 2″ | M50 | 1.06 | 0.59 | 1.51 | 1.68 | 1.68 | 1.85 | 1.58 | 1.97 | 2.52 | 2.76 | 3.03 | PVC21 | 42.33 |
| TMC200A | TMC200NB | TMC200SS | 2″ | M63 | 1.06 | 0.59 | 1.77 | 1.93 | 1.93 | 2.09 | 1.86 | 2.21 | 2.49 | 2.95 | 3.25 | PVC23 | 38.80 |
| TMC250SA | TMC250SNB | TMC250SSS | 2 ½” | M75 | 1.57 | 0.59 | 2.05 | 2.16 | 2.16 | 2.32 | 2.08 | 2.44 | 2.73 | 3.15 | 3.47 | PVC25 | 59.97 |
| TMC250A | TMC250NB | TMC250SS | 2 ½” | M75 | 1.57 | 0.59 | 2.25 | 2.41 | 2.41 | 2.55 | 2.33 | 2.68 | 2.84 | 3.35 | 3.68 | PVC27 | 56.48 |
| TMC300A | TMC300NB | TMC300SS | 3″ | M90 | 1.63 | 0.59 | 2.54 | 2.78 | 2.78 | 2.97 | 2.62 | 3.13 | 3.87 | 4.33 | 4.76 | LSF32 | 123.46 |
| TMC350A | TMC350NB | TMC350SS | 3½” | M100 | 1.69 | 0.95 | 2.91 | 3.29 | 3.29 | 3.49 | 2.99 | 3.83 | 4.63 | 5.25 | 5.78 | LSF34 | 236.34 |
| TMC400A | TMC400NB | TMC400SS | 4″ | M115 | 1.73 | 0.95 | 2.91 | 3.29 | 3.29 | 3.49 | 2.99 | 3.83 | 4.63 | 5.25 | 5.78 | LSF34 | 264.55 |
| Dimensions displayed in inches unless otherwise stated | |||||||||||||||||
