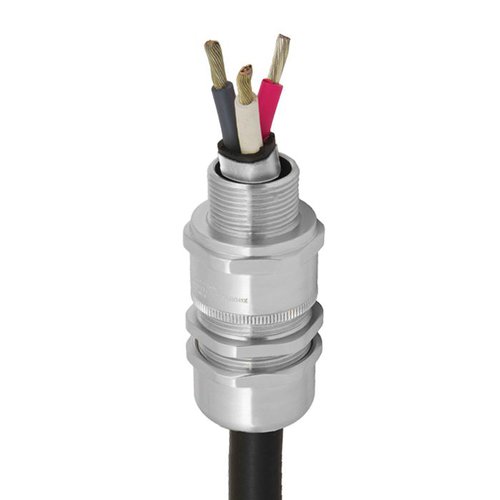

SS2KGPPB Cable Gland
industrial / general purpose double seal lead sheath gland

Double Seal Industrial Cable Gland

• Effectively earths / grounds lead sheathed cables
• Suitable for Tape Armours
• Direct & remote installation
• Superior levels of cable retention
• Displacement type seals
• Designed to prevent Coldflow
• Deluge protected
• -60°C to +130°C

For all types of Lead Sheathed Unarmoured Cables

Description
Download Spec Sheet

Description

Technical

Design Specification	BS 6121:Part 1:1989, IEC 62444, EN 62444
Mechanical Classifications*	Impact = Level 8, Retention = Class B
Enclosure Protection	IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
Marine Approvals	LRS: 01/00171 (E1), ABS: 16-LD1472056-PDA
Ingress Protection Rating **	IP66, IP67 & IP68
Cable Gland Material	Brass, Electroless Nickel Plated Brass, Stainless Steel, Aluminium
Seal Material	CMP Thermoset Rubber
Cable Type	Unarmoured Lead Sheathed, Steel Tape Armour (STA), Aluminium Tape Armour (ATA)
Sealing Technique	CMP Unique Displacement Seal Concept
Sealing Area(s)	Cable Inner Lead Sheath & Outer Sheath
Optional Accessories	Locknuts, Earth Tags, Serrated Washers, Entry Thread Seals, Shrouds,Ingress Discs
Optional Installation Tools	Spanners

Product Table

Metric

Cable Gland Size	Available Entry Threads “C” (Alternate Metric Thread Lengths Available)					Lead Sheath Diameter “A”		Overall Cable Diameter “B”		Across Flats “D”	Across Corners “D”	Protrusion Length “F”	Combined Ordering Reference (*Brass Metric)			Shroud	Cable Gland Weight (Kgs)
	Standard				Option	Lead Sheath Diameter “A”		Overall Cable Diameter “B”		Across Flats “D”	Across Corners “D”		Combined Ordering Reference (*Brass Metric)
	Metric	Metric	Thread Length (Metric) “E”	Thread Length (NPT) “E”	NPT	Min	Max	Min	Max	Max	Max		Size	Type	Ordering Suffix
20S16	M20	10.0	½”	19.9	¾”	3.2	7.8	3.2	8.6	24.0	26.4	49.5	20S16	SS2KGPPB	1RA	PVC04	0.14
20S	M20	10.0	½”	19.9	¾”	6.1	11.0	6.1	11.7	24.0	26.4	49.5	20S	SS2KGPPB	1RA	PVC04	0.13
20	M20	10.0	½”	19.9	¾”	6.5	13.4	6.5	14.0	27.0	29.7	54.5	20	SS2KGPPB	1RA	PVC05	0.16
25	M25	10.0	¾”	20.2	1″	11.1	19.3	11.1	20.0	36.0	39.6	66.5	25	SS2KGPPB	1RA	PVC09	0.30
32	M32	10.0	1″	25.0	1 ¼”	17.0	25.5	17.0	26.3	41.0	45.1	67.5	32	SS2KGPPB	1RA	PVC10	0.35
40	M40	15.0	1 ¼”	25.6	1 ½”	23.5	31.2	23.5	32.1	50.0	55.0	70.5	40	SS2KGPPB	1RA	PVC13	0.51
50S	M50	15.0	1 ½”	26.1	2″	31.0	37.2	31.0	38.2	55.0	60.5	65.5	50S	SS2KGPPB	1RA	PVC15	0.57
50	M50	15.0	2″	26.9	2 ½”	35.6	42.6	35.6	44.0	60.0	66.0	70.5	50	SS2KGPPB	1RA	PVC18	0.60
63S	M63	15.0	2″	26.9	2 ½”	41.5	48.5	41.5	49.9	70.5	77.6	70.5	63S	SS2KGPPB	1RA	PVC21	0.90
63	M63	15.0	2 ½”	39.9	3″	47.2	54.2	47.2	55.9	75.0	82.5	71.5	63	SS2KGPPB	1RA	PVC23	0.86
75S	M75	15.0	2 ½”	39.9	3″	54.0	60.2	54.0	61.9	80.0	88.0	70.5	75S	SS2KGPPB	1RA	PVC25	1.03
75	M75	15.0	3″	41.5	3 ½”	61.1	65.2	61.1	67.9	84.0	92.4	75.5	75	SS2KGPPB	1RA	PVC26	1.00
90	M90	24.0	3 ½”	42.8	4″	66.6	77.1	66.6	79.4	108.0	118.8	113.5	90	SS2KGPPB	1RA	PVC31	3.01
100	M100	24.0	3 ½”	42.8	4″	76.0	88.1	76.0	90.9	123.0	134.2	106.5	100	SS2KGPPB	1RA	LSF33	3.41
115	M115	24.0	4″	44.0	5″	86.0	94.1	86.0	97.9	133.4	146.7	128.5	115	SS2KGPPB	1RA	LSF34	5.35
130	M130	24.0	5″	46.8	–	97.0	110.1	97.0	114.9	152.4	167.6	129.5	130	SS2KGPPB	1RA	LSF35	6.39
Dimensions displayed in millimeters unless otherwise stated

Imperial

Cable Gland Size	Available Entry Threads “C” (Alternate Metric Thread Lengths Available)					Lead Sheath Diameter “A”		Overall Cable Diameter “B”		Across Flats “D”	Across Corners “D”	Protrusion Length “F”	Combined Ordering Reference (*Brass Metric)			Shroud	Cable Gland Weight (Ozs)
	Standard				Option	Lead Sheath Diameter “A”		Overall Cable Diameter “B”		Across Flats “D”	Across Corners “D”		Combined Ordering Reference (*Brass Metric)
	Metric	Metric	Thread Length (Metric) “E”	Thread Length (NPT) “E”	NPT	Min	Max	Min	Max	Max	Max		Size	Type	Ordering Suffix
20S16	M20	0.39	½”	0.78	¾”	0.13	0.31	0.13	0.34	0.94	1.04	1.95	20S16	SS2KGPPB	1RA	PVC04	4.94
20S	M20	0.39	½”	0.78	¾”	0.24	0.43	0.24	0.46	0.94	1.04	1.95	20S	SS2KGPPB	1RA	PVC04	4.59
20	M20	0.39	½”	0.78	¾”	0.26	0.53	0.26	0.55	1.06	1.17	2.15	20	SS2KGPPB	1RA	PVC05	5.64
25	M25	0.39	¾”	0.80	1″	0.44	0.76	0.44	0.79	1.42	1.56	2.62	25	SS2KGPPB	1RA	PVC09	10.58
32	M32	0.39	1″	0.98	1 ¼”	0.67	1.00	0.67	1.04	1.61	1.78	2.66	32	SS2KGPPB	1RA	PVC10	12.35
40	M40	0.59	1 ¼”	1.01	1 ½”	0.93	1.23	0.93	1.26	1.97	2.17	2.78	40	SS2KGPPB	1RA	PVC13	17.99
50S	M50	0.59	1 ½”	1.03	2″	1.22	1.46	1.22	1.50	2.17	2.38	2.58	50S	SS2KGPPB	1RA	PVC15	20.11
50	M50	0.59	2″	1.06	2 ½”	1.40	1.68	1.40	1.73	2.36	2.60	2.78	50	SS2KGPPB	1RA	PVC18	21.16
63S	M63	0.59	2″	1.06	2 ½”	1.63	1.91	1.63	1.96	2.78	3.06	2.78	63S	SS2KGPPB	1RA	PVC21	31.75
63	M63	0.59	2 ½”	1.57	3″	1.86	2.13	1.86	2.20	2.95	3.25	2.81	63	SS2KGPPB	1RA	PVC23	30.34
75S	M75	0.59	2 ½”	1.57	3″	2.13	2.37	2.13	2.44	3.15	3.46	2.78	75S	SS2KGPPB	1RA	PVC25	36.33
75	M75	0.59	3″	1.63	3 ½”	2.41	2.57	2.41	2.67	3.31	3.64	2.97	75	SS2KGPPB	1RA	PVC26	35.27
90	M90	0.94	3 ½”	1.69	4″	2.62	3.04	2.62	3.13	4.25	4.68	4.47	90	SS2KGPPB	1RA	PVC31	106.17
100	M100	0.94	3 ½”	1.69	4″	2.99	3.47	2.99	3.58	4.84	5.28	4.19	100	SS2KGPPB	1RA	LSF33	120.28
115	M115	0.94	4″	1.73	5″	3.39	3.70	3.39	3.85	5.25	5.78	5.06	115	SS2KGPPB	1RA	LSF34	188.72
130	M130	0.94	5″	1.84	–	3.82	4.33	3.82	4.52	6.00	6.60	5.10	130	SS2KGPPB	1RA	LSF35	225.40
Dimensions displayed in inches unless otherwise stated

Download Spec Sheet

Download

Technical

Design Specification	BS 6121:Part 1:1989, IEC 62444, EN 62444
Mechanical Classifications*	Impact = Level 8, Retention = Class B
Enclosure Protection	IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
Marine Approvals	LRS: 01/00171 (E1), ABS: 16-LD1472056-PDA
Ingress Protection Rating **	IP66, IP67 & IP68
Cable Gland Material	Brass, Electroless Nickel Plated Brass, Stainless Steel, Aluminium
Seal Material	CMP Thermoset Rubber
Cable Type	Unarmoured Lead Sheathed, Steel Tape Armour (STA), Aluminium Tape Armour (ATA)
Sealing Technique	CMP Unique Displacement Seal Concept
Sealing Area(s)	Cable Inner Lead Sheath & Outer Sheath
Optional Accessories	Locknuts, Earth Tags, Serrated Washers, Entry Thread Seals, Shrouds,Ingress Discs
Optional Installation Tools	Spanners

Product Table

Metric

Cable Gland Size	Available Entry Threads “C” (Alternate Metric Thread Lengths Available)					Lead Sheath Diameter “A”		Overall Cable Diameter “B”		Across Flats “D”	Across Corners “D”	Protrusion Length “F”	Combined Ordering Reference (*Brass Metric)			Shroud	Cable Gland Weight (Kgs)
	Standard				Option	Lead Sheath Diameter “A”		Overall Cable Diameter “B”		Across Flats “D”	Across Corners “D”		Combined Ordering Reference (*Brass Metric)
	Metric	Metric	Thread Length (Metric) “E”	Thread Length (NPT) “E”	NPT	Min	Max	Min	Max	Max	Max		Size	Type	Ordering Suffix
20S16	M20	10.0	½”	19.9	¾”	3.2	7.8	3.2	8.6	24.0	26.4	49.5	20S16	SS2KGPPB	1RA	PVC04	0.14
20S	M20	10.0	½”	19.9	¾”	6.1	11.0	6.1	11.7	24.0	26.4	49.5	20S	SS2KGPPB	1RA	PVC04	0.13
20	M20	10.0	½”	19.9	¾”	6.5	13.4	6.5	14.0	27.0	29.7	54.5	20	SS2KGPPB	1RA	PVC05	0.16
25	M25	10.0	¾”	20.2	1″	11.1	19.3	11.1	20.0	36.0	39.6	66.5	25	SS2KGPPB	1RA	PVC09	0.30
32	M32	10.0	1″	25.0	1 ¼”	17.0	25.5	17.0	26.3	41.0	45.1	67.5	32	SS2KGPPB	1RA	PVC10	0.35
40	M40	15.0	1 ¼”	25.6	1 ½”	23.5	31.2	23.5	32.1	50.0	55.0	70.5	40	SS2KGPPB	1RA	PVC13	0.51
50S	M50	15.0	1 ½”	26.1	2″	31.0	37.2	31.0	38.2	55.0	60.5	65.5	50S	SS2KGPPB	1RA	PVC15	0.57
50	M50	15.0	2″	26.9	2 ½”	35.6	42.6	35.6	44.0	60.0	66.0	70.5	50	SS2KGPPB	1RA	PVC18	0.60
63S	M63	15.0	2″	26.9	2 ½”	41.5	48.5	41.5	49.9	70.5	77.6	70.5	63S	SS2KGPPB	1RA	PVC21	0.90
63	M63	15.0	2 ½”	39.9	3″	47.2	54.2	47.2	55.9	75.0	82.5	71.5	63	SS2KGPPB	1RA	PVC23	0.86
75S	M75	15.0	2 ½”	39.9	3″	54.0	60.2	54.0	61.9	80.0	88.0	70.5	75S	SS2KGPPB	1RA	PVC25	1.03
75	M75	15.0	3″	41.5	3 ½”	61.1	65.2	61.1	67.9	84.0	92.4	75.5	75	SS2KGPPB	1RA	PVC26	1.00
90	M90	24.0	3 ½”	42.8	4″	66.6	77.1	66.6	79.4	108.0	118.8	113.5	90	SS2KGPPB	1RA	PVC31	3.01
100	M100	24.0	3 ½”	42.8	4″	76.0	88.1	76.0	90.9	123.0	134.2	106.5	100	SS2KGPPB	1RA	LSF33	3.41
115	M115	24.0	4″	44.0	5″	86.0	94.1	86.0	97.9	133.4	146.7	128.5	115	SS2KGPPB	1RA	LSF34	5.35
130	M130	24.0	5″	46.8	–	97.0	110.1	97.0	114.9	152.4	167.6	129.5	130	SS2KGPPB	1RA	LSF35	6.39
Dimensions displayed in millimeters unless otherwise stated

Imperial

Cable Gland Size	Available Entry Threads “C” (Alternate Metric Thread Lengths Available)					Lead Sheath Diameter “A”		Overall Cable Diameter “B”		Across Flats “D”	Across Corners “D”	Protrusion Length “F”	Combined Ordering Reference (*Brass Metric)			Shroud	Cable Gland Weight (Ozs)
	Standard				Option	Lead Sheath Diameter “A”		Overall Cable Diameter “B”		Across Flats “D”	Across Corners “D”		Combined Ordering Reference (*Brass Metric)
	Metric	Metric	Thread Length (Metric) “E”	Thread Length (NPT) “E”	NPT	Min	Max	Min	Max	Max	Max		Size	Type	Ordering Suffix
20S16	M20	0.39	½”	0.78	¾”	0.13	0.31	0.13	0.34	0.94	1.04	1.95	20S16	SS2KGPPB	1RA	PVC04	4.94
20S	M20	0.39	½”	0.78	¾”	0.24	0.43	0.24	0.46	0.94	1.04	1.95	20S	SS2KGPPB	1RA	PVC04	4.59
20	M20	0.39	½”	0.78	¾”	0.26	0.53	0.26	0.55	1.06	1.17	2.15	20	SS2KGPPB	1RA	PVC05	5.64
25	M25	0.39	¾”	0.80	1″	0.44	0.76	0.44	0.79	1.42	1.56	2.62	25	SS2KGPPB	1RA	PVC09	10.58
32	M32	0.39	1″	0.98	1 ¼”	0.67	1.00	0.67	1.04	1.61	1.78	2.66	32	SS2KGPPB	1RA	PVC10	12.35
40	M40	0.59	1 ¼”	1.01	1 ½”	0.93	1.23	0.93	1.26	1.97	2.17	2.78	40	SS2KGPPB	1RA	PVC13	17.99
50S	M50	0.59	1 ½”	1.03	2″	1.22	1.46	1.22	1.50	2.17	2.38	2.58	50S	SS2KGPPB	1RA	PVC15	20.11
50	M50	0.59	2″	1.06	2 ½”	1.40	1.68	1.40	1.73	2.36	2.60	2.78	50	SS2KGPPB	1RA	PVC18	21.16
63S	M63	0.59	2″	1.06	2 ½”	1.63	1.91	1.63	1.96	2.78	3.06	2.78	63S	SS2KGPPB	1RA	PVC21	31.75
63	M63	0.59	2 ½”	1.57	3″	1.86	2.13	1.86	2.20	2.95	3.25	2.81	63	SS2KGPPB	1RA	PVC23	30.34
75S	M75	0.59	2 ½”	1.57	3″	2.13	2.37	2.13	2.44	3.15	3.46	2.78	75S	SS2KGPPB	1RA	PVC25	36.33
75	M75	0.59	3″	1.63	3 ½”	2.41	2.57	2.41	2.67	3.31	3.64	2.97	75	SS2KGPPB	1RA	PVC26	35.27
90	M90	0.94	3 ½”	1.69	4″	2.62	3.04	2.62	3.13	4.25	4.68	4.47	90	SS2KGPPB	1RA	PVC31	106.17
100	M100	0.94	3 ½”	1.69	4″	2.99	3.47	2.99	3.58	4.84	5.28	4.19	100	SS2KGPPB	1RA	LSF33	120.28
115	M115	0.94	4″	1.73	5″	3.39	3.70	3.39	3.85	5.25	5.78	5.06	115	SS2KGPPB	1RA	LSF34	188.72
130	M130	0.94	5″	1.84	–	3.82	4.33	3.82	4.52	6.00	6.60	5.10	130	SS2KGPPB	1RA	LSF35	225.40
Dimensions displayed in inches unless otherwise stated
